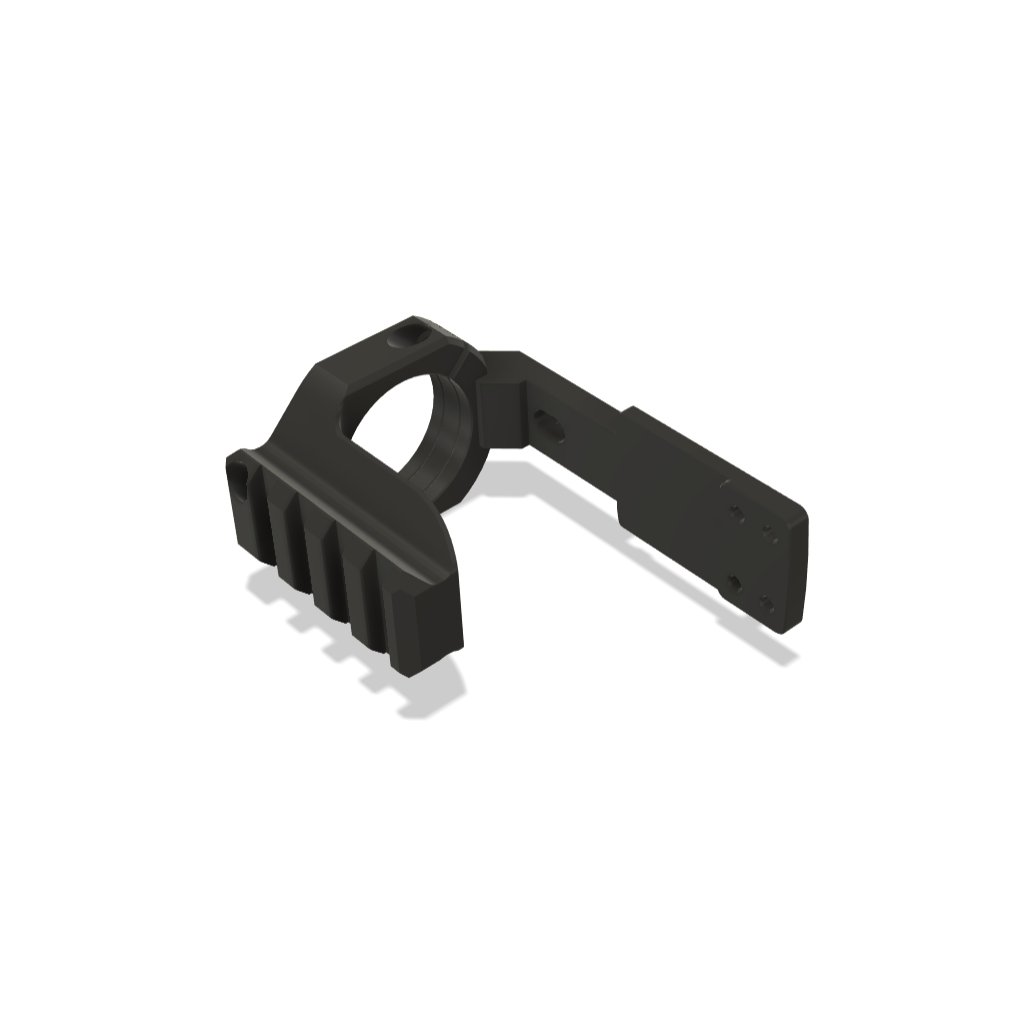

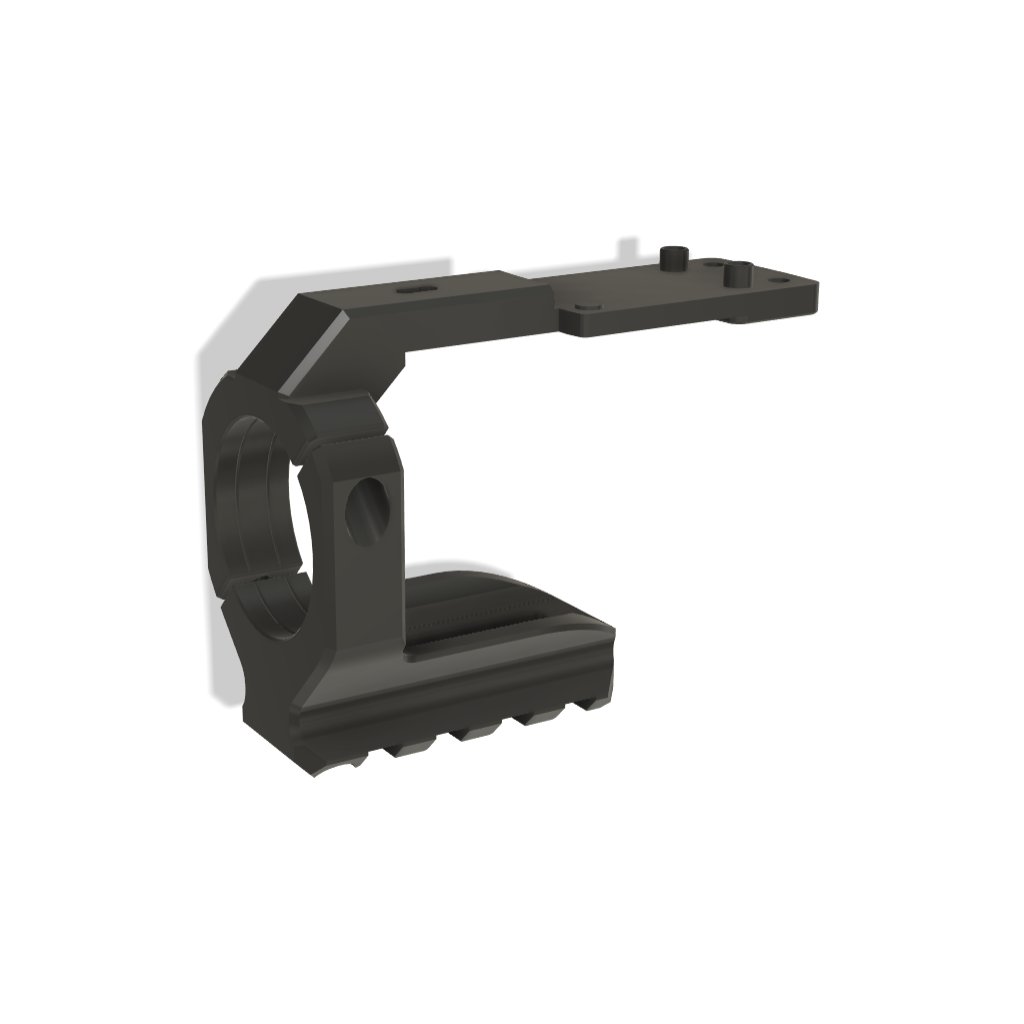

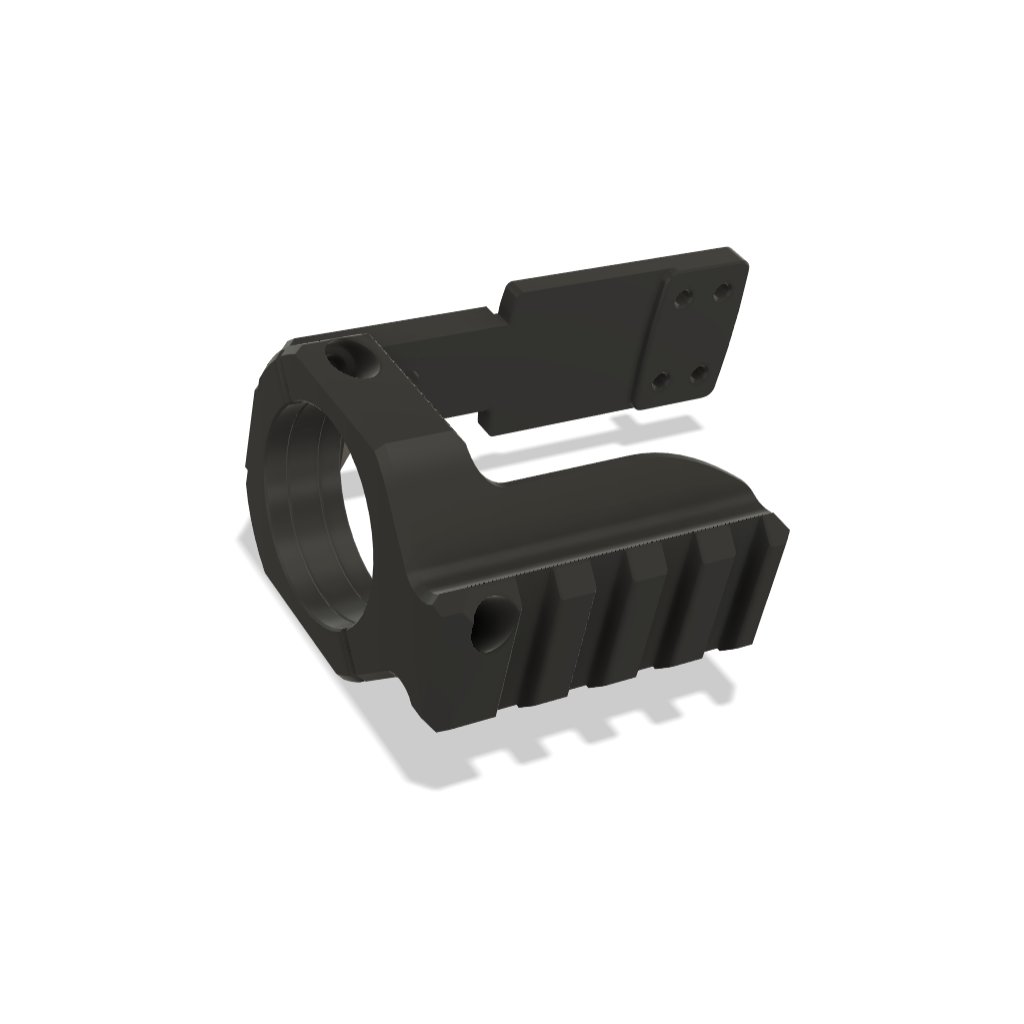

RED DOT MOUNT WITH PICATINNY RAIL

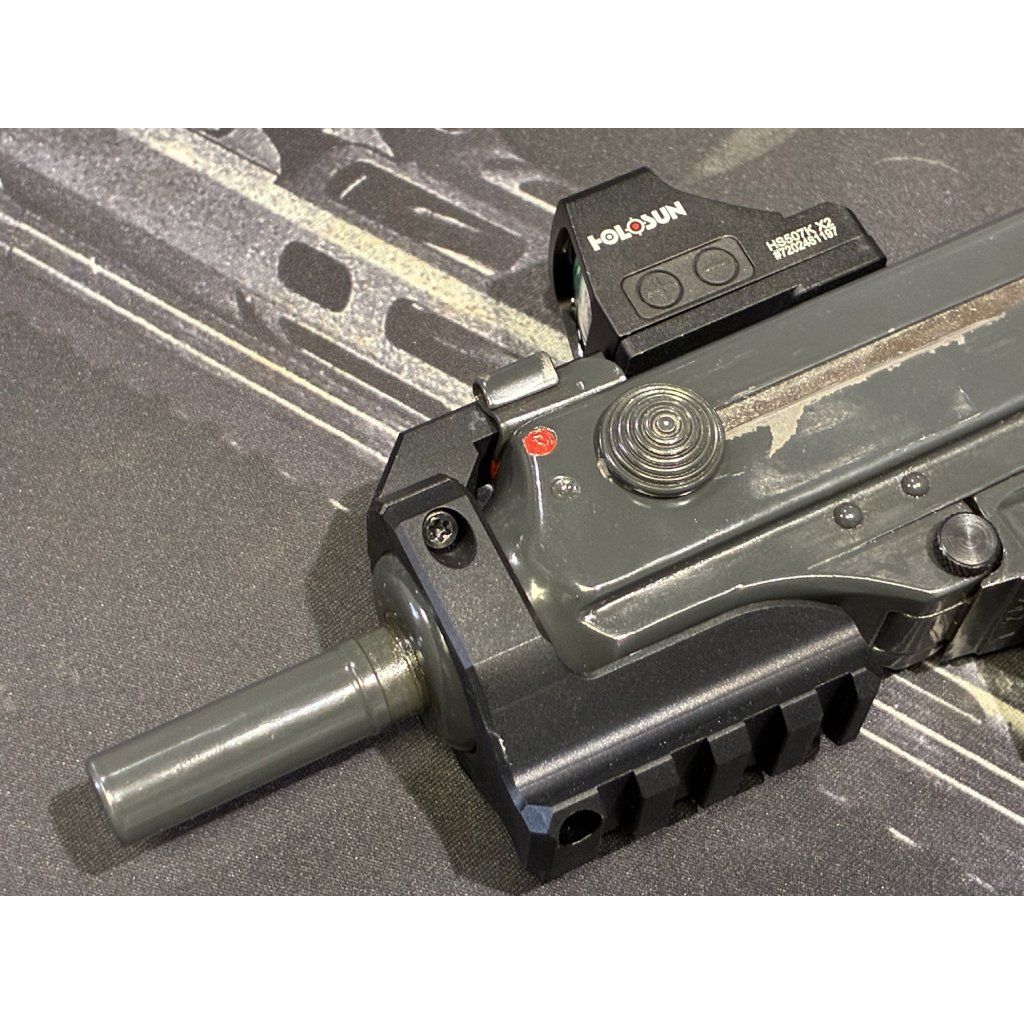

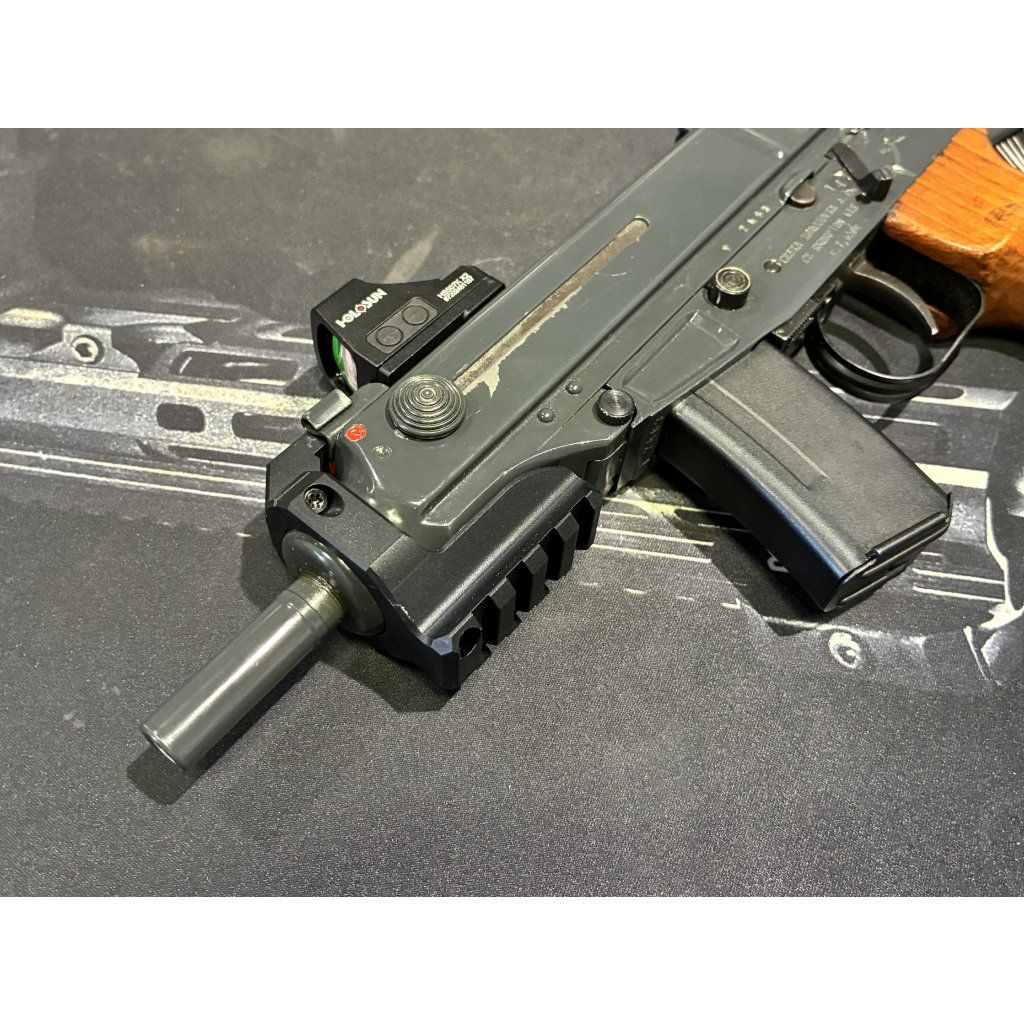

Red dot mount with picatinny rail for Vz. 61 is primarily designed for small pistol red dots (testing and development were carried out on them):

Holosun HS407K X2 FOOTPRINT

Holosun HS507K X2 FOOTPRINT

It is made of two parts from AW7075 aircraft aluminum with hard black anodizing.

The package includes installation screws (we recommend securing all screws with green Loctite 2701 during installation):

2x M3x8 low head screws,

2x M3x8 countersunk head screws,

2x M3x4 set screws.

Tighten the M3x4 set screws only until they lightly touch the slide housing. They serve to limit unwanted vibrations of the mount during shooting. If tightened too much, they will damage the mount and the red dot may be out of its adjustment range.

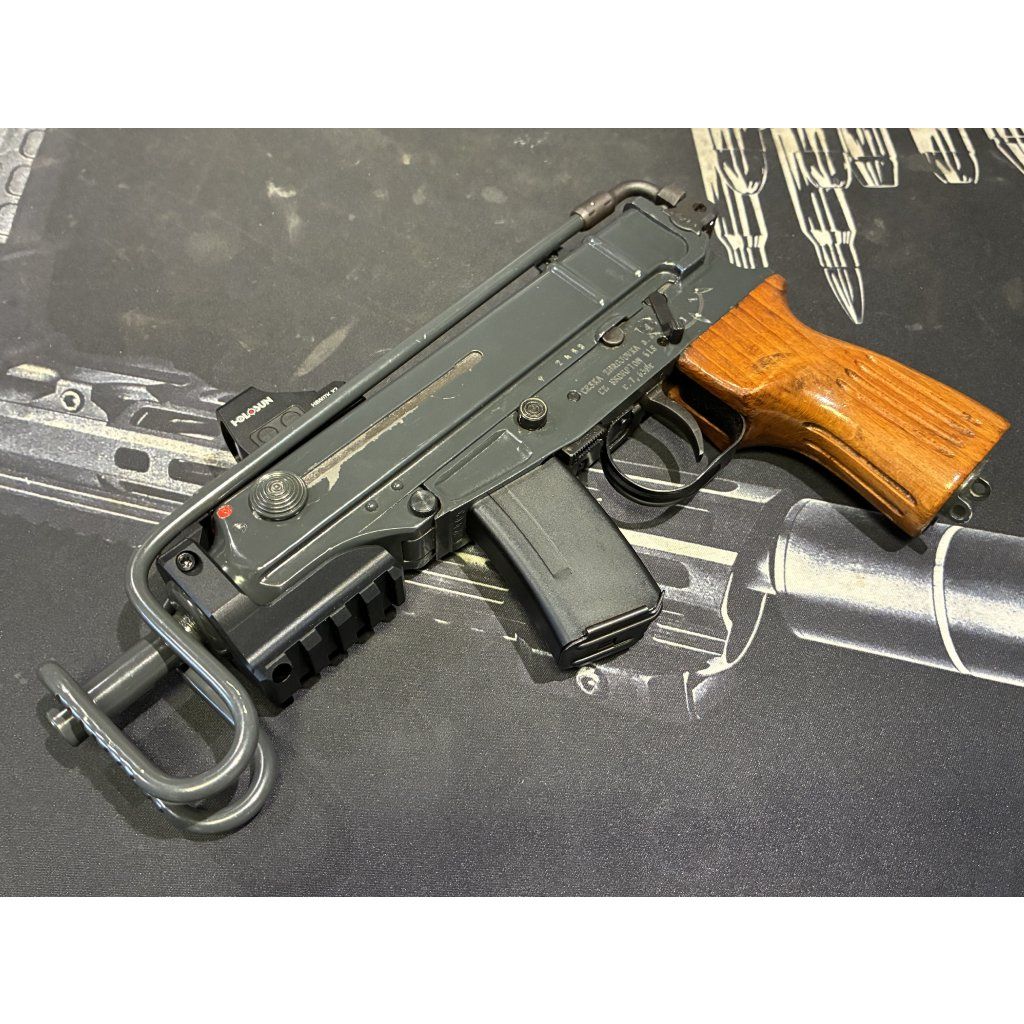

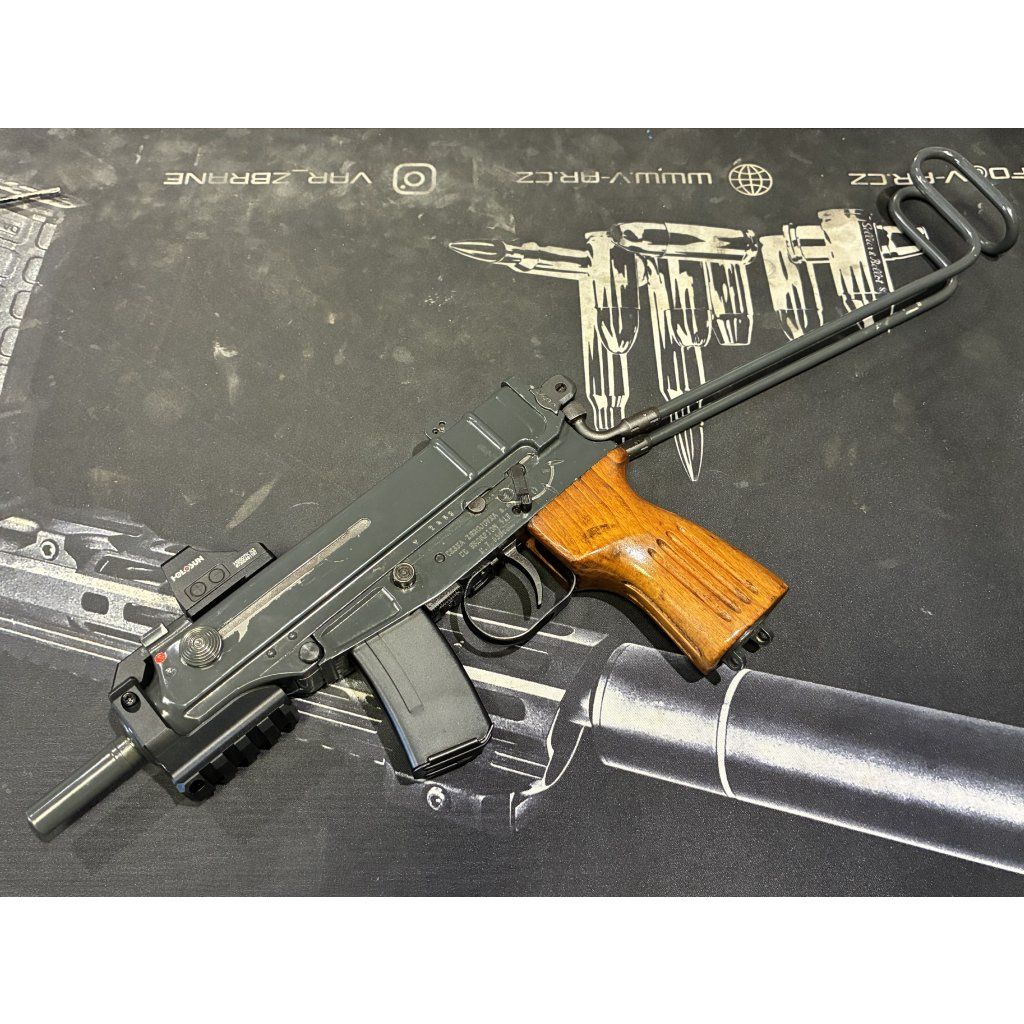

Thanks to this mount, the original clamp-on silencer can be used and the stock can be folded down after a minor adjustment (bending the stock wire or slightly grinding the hole; applies to Holosun HS407K X2 and HS507K X2).
