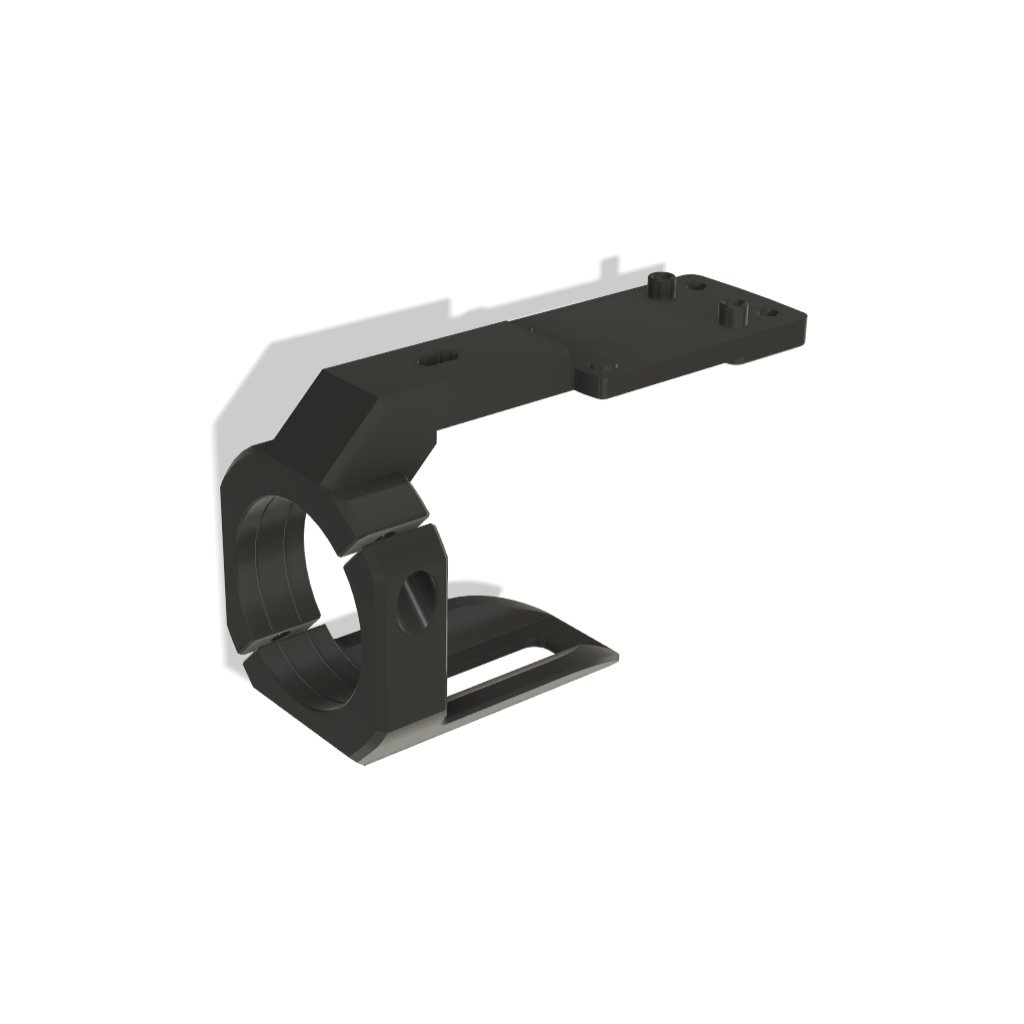

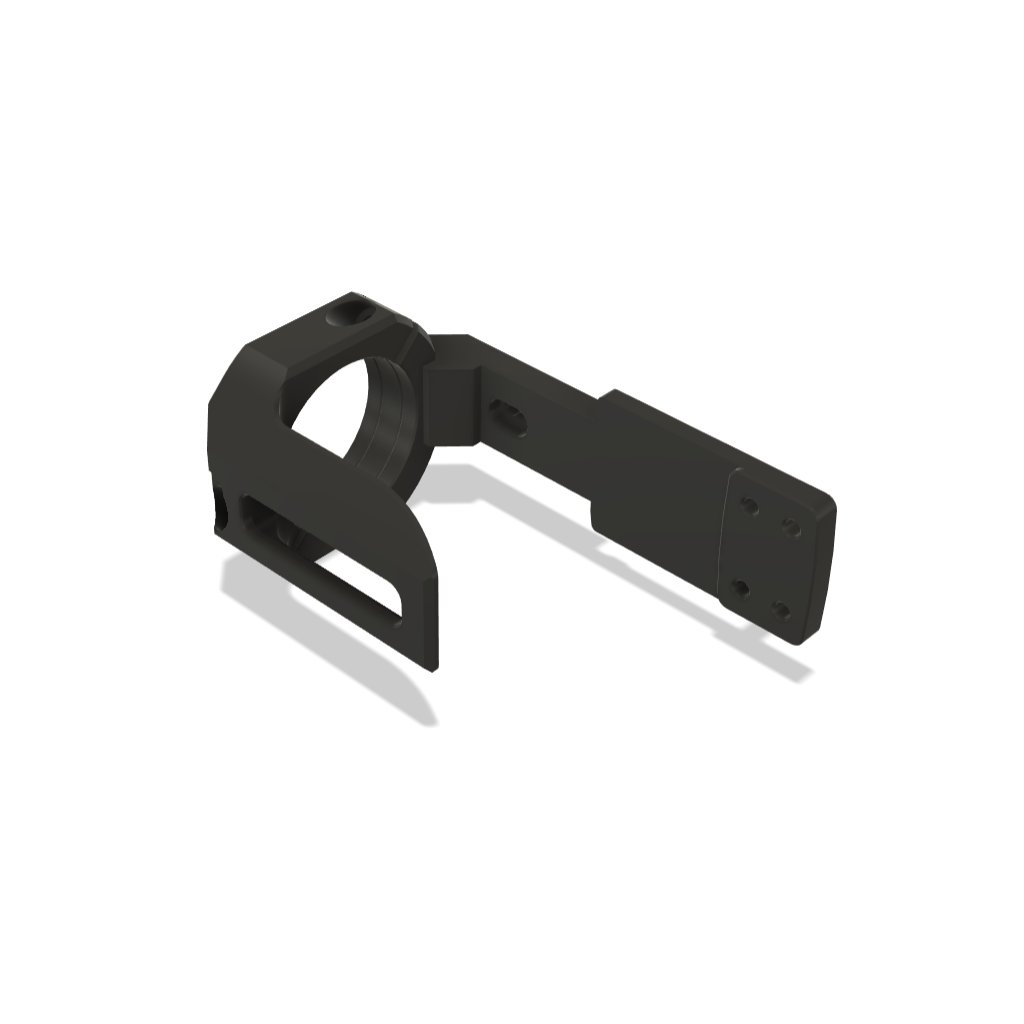

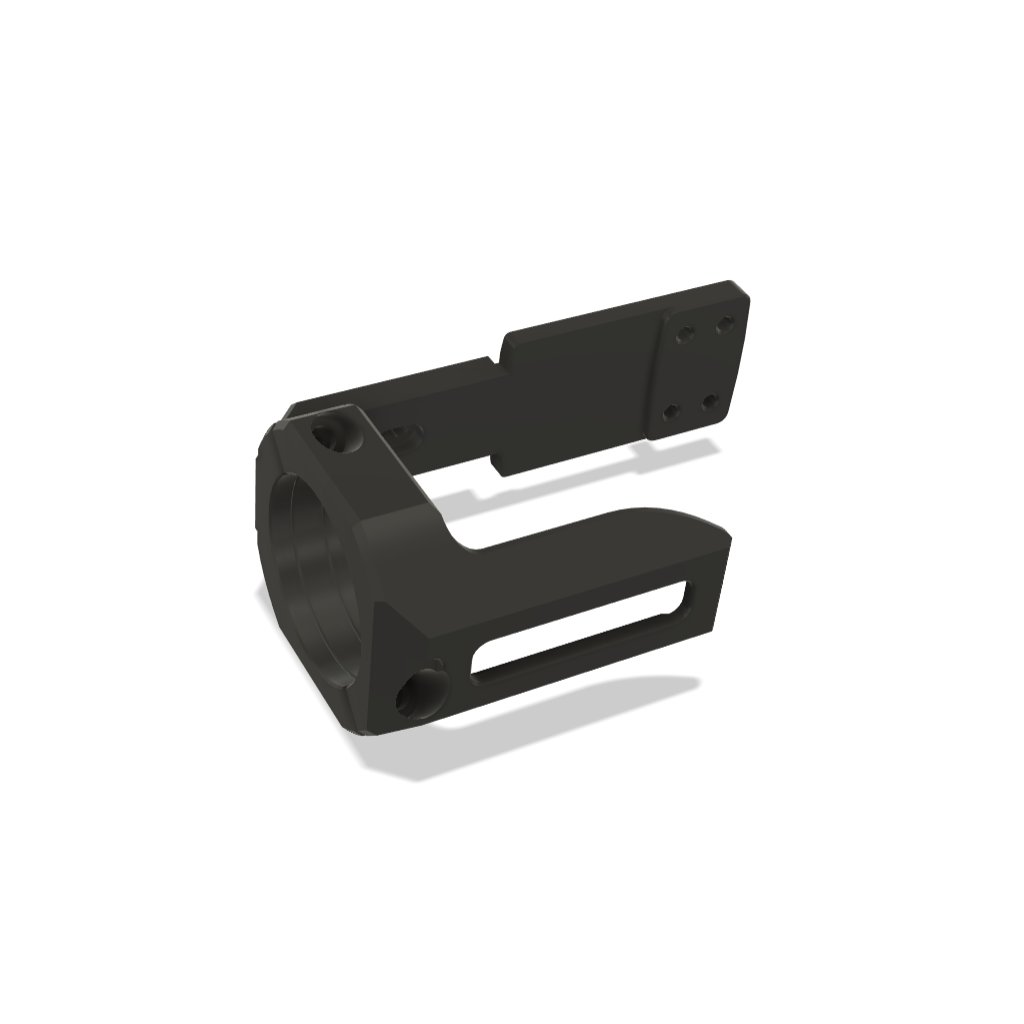

RED DOT MOUNT WITH M-LOK

Red dot mount with M-LOK mounting interface for Vz. 61 is primarily designed for small pistol red dots with RMSc footprint like:

Holosun HS407K X2

Holosun HS507K X2

Olight Osight K

It is made of two parts from AW7075 aircraft aluminum with hard black anodizing.

The package includes installation screws (for permanent instalation we recommend securing all screws with Loctite 243):

2x M3x8 low head screws,

2x M3x8 countersunk head screws,

2x M4x5 set screws.

Tighten the M4x5 set screws only until they lightly touch the slide housing. They serve to limit unwanted vibrations of the mount during shooting. If tightened too much, they will damage the mount and the red dot may be out of its adjustment range.

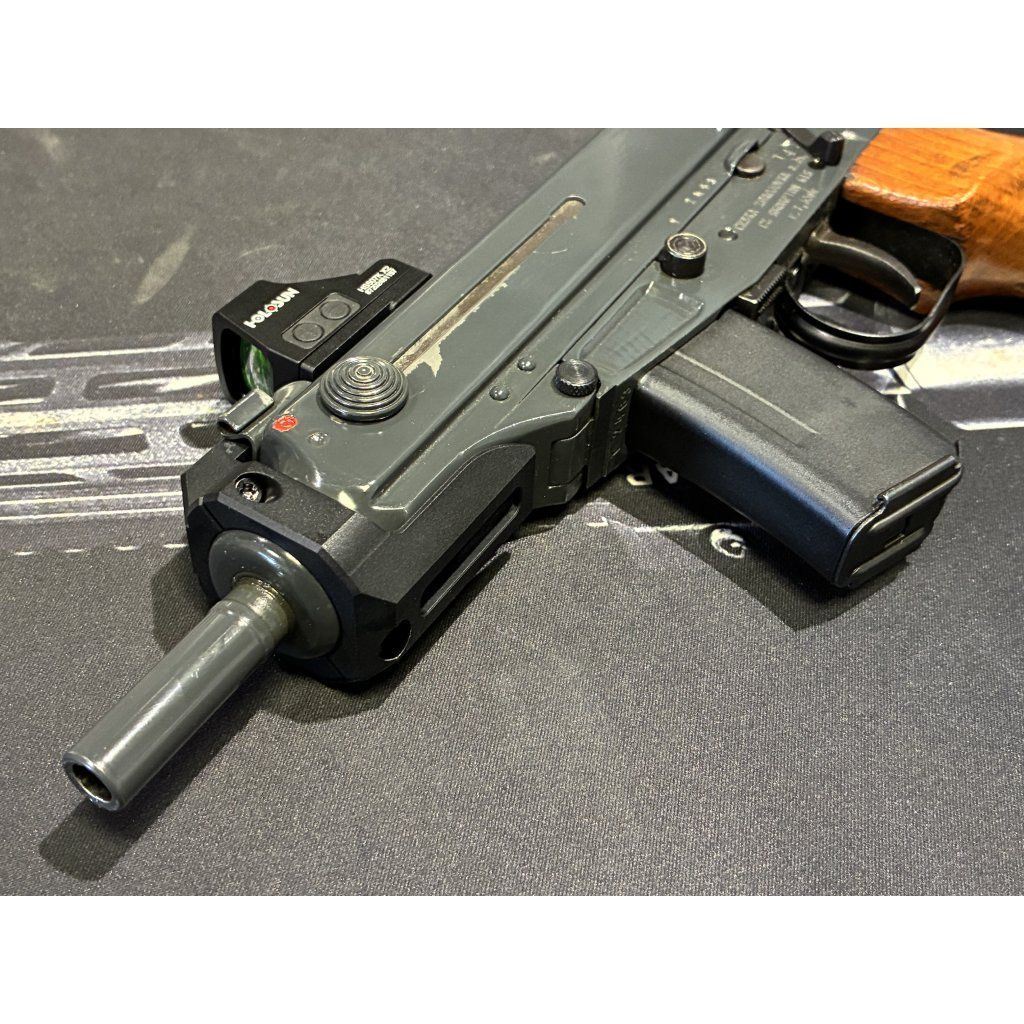

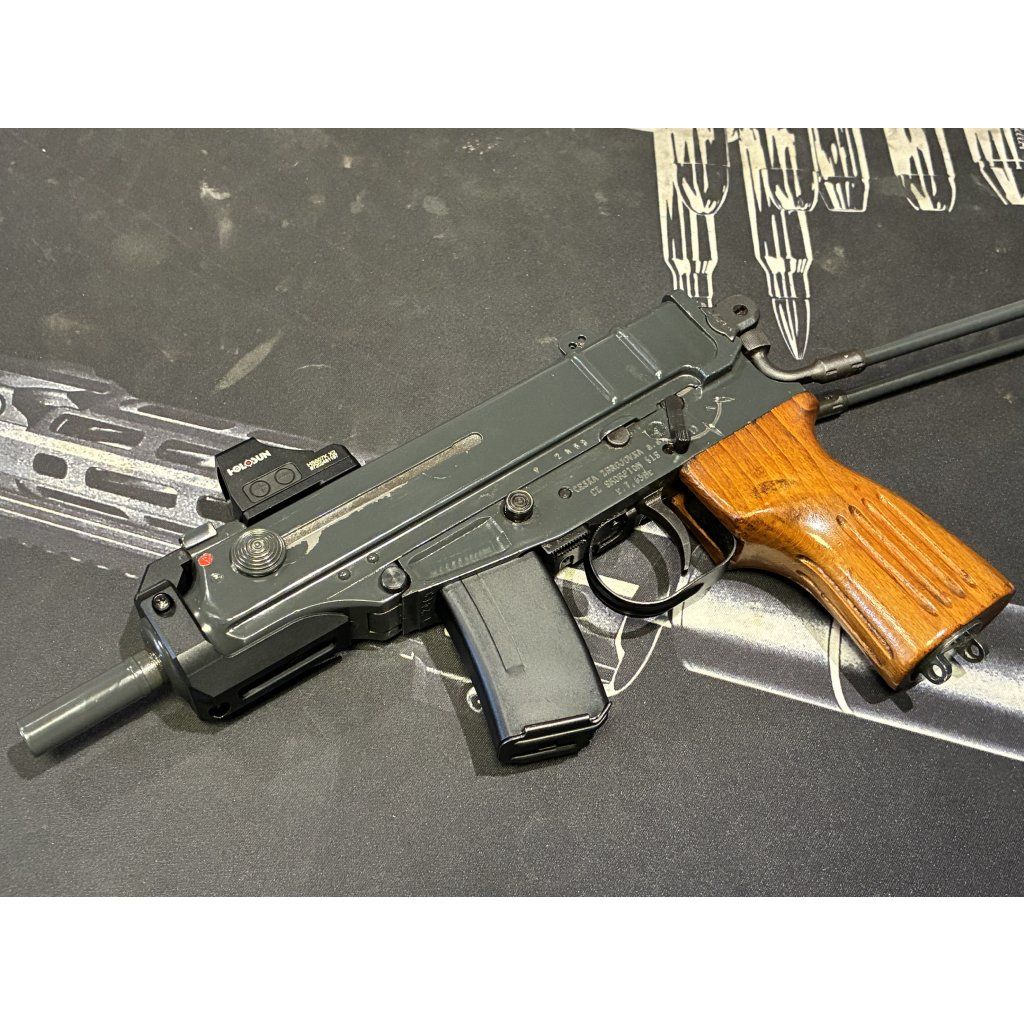

Thanks to this mount, the original clamp-on silencer can be used and the stock can be folded down after a minor adjustment (bending the stock wire or slightly grinding the hole; applies to Holosuns HS407K X2, HS507K X2 and Olight Osight K).
